YFBCM Series

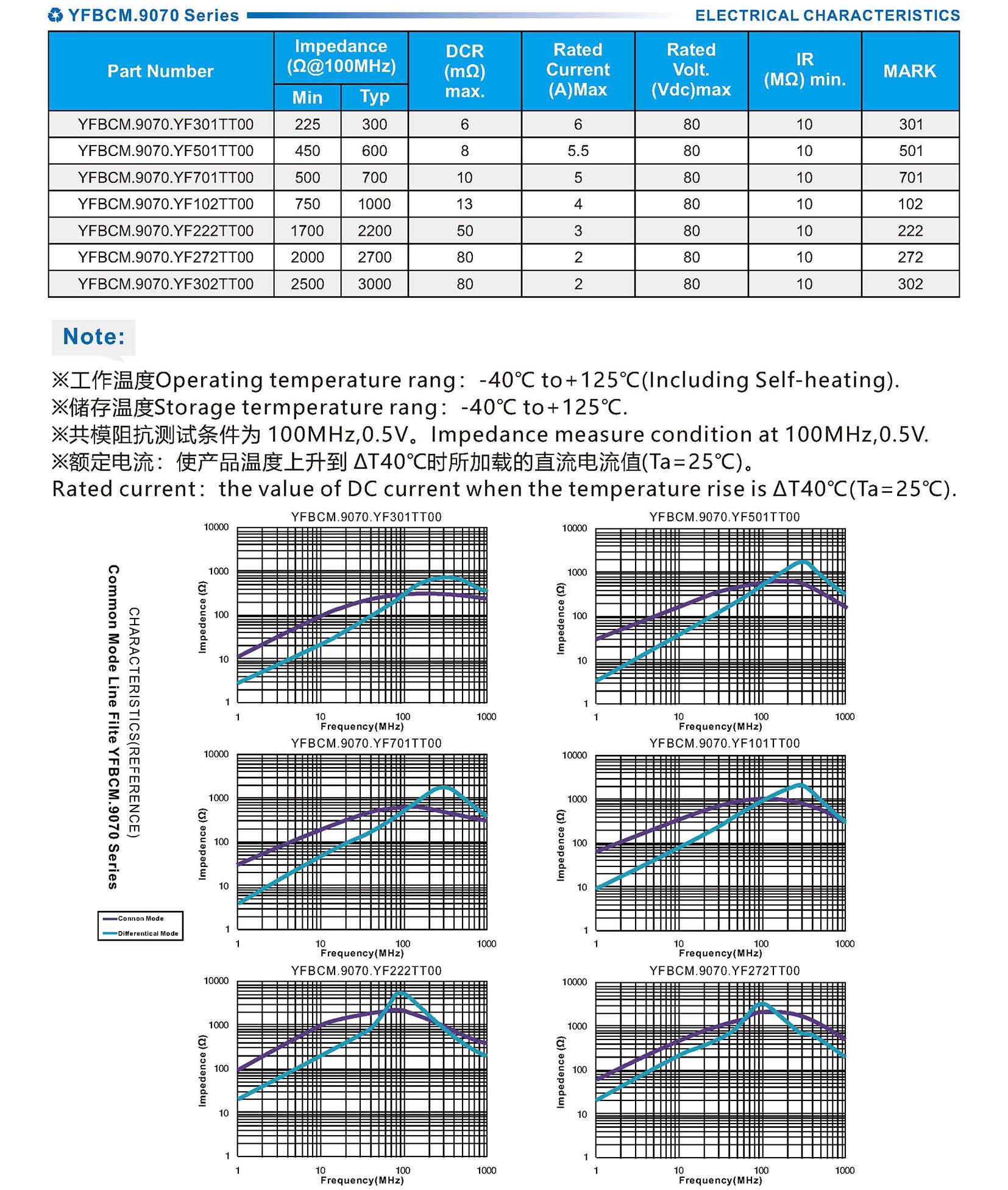

※工作温度Operating temperature rang：-40℃ to+125℃(Including Self-heating).

※储存温度Storage termperature rang：-40℃ to+125℃.

※共模阻抗测试条件为 100MHz,0.5V。Impedance measure condition at 100MHz,0.5V.

※额定电流：使产品温度上升到 ΔT40℃时所加载的直流电流值(Ta=25℃)。

Rated current：the value of DC current when the temperature rise is ΔT40℃(Ta=25℃).

※工作温度Operating temperature rang：-40℃ to+125℃(Including Self-heating).

※储存温度Storage termperature rang：-40℃ to+125℃.

※共模阻抗测试条件为 100MHz,0.5V。Impedance measure condition at 100MHz,0.5V.

※额定电流：使产品温度上升到 ΔT40℃时所加载的直流电流值(Ta=25℃)。

Rated current：the value of DC current when the temperature rise is ΔT40℃(Ta=25℃).
