〓 LRH TYPE
|

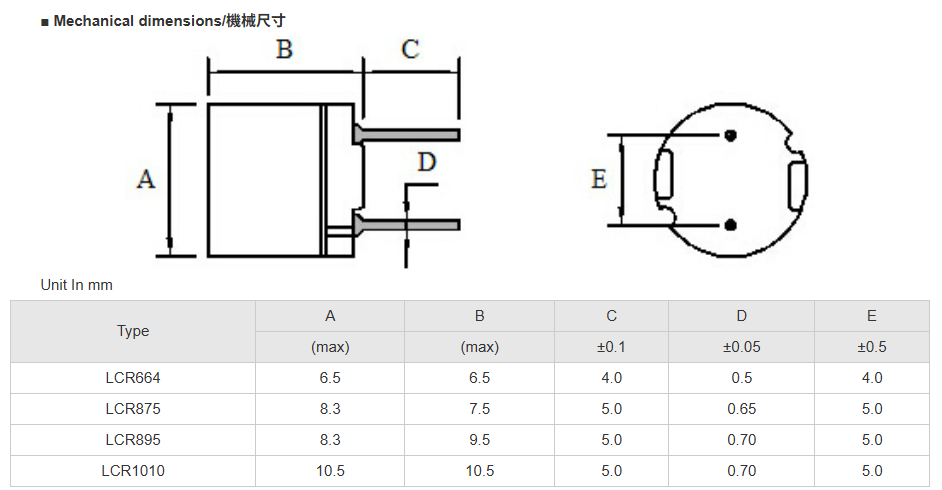

| ● EXTERNAL DIMENSIONS UNIT：mm(外形尺寸) |
|
|
|
| PARTNO. |
A |
B(max) |
C |
D |
E(REF) |
F |
| LRH0807C |
7.8±0.5 |
7.5 |
5.0±0.5 |
0.7±0.1 |
5.0±1 |
FIG1 |
|
LRH0807C TYPE
|

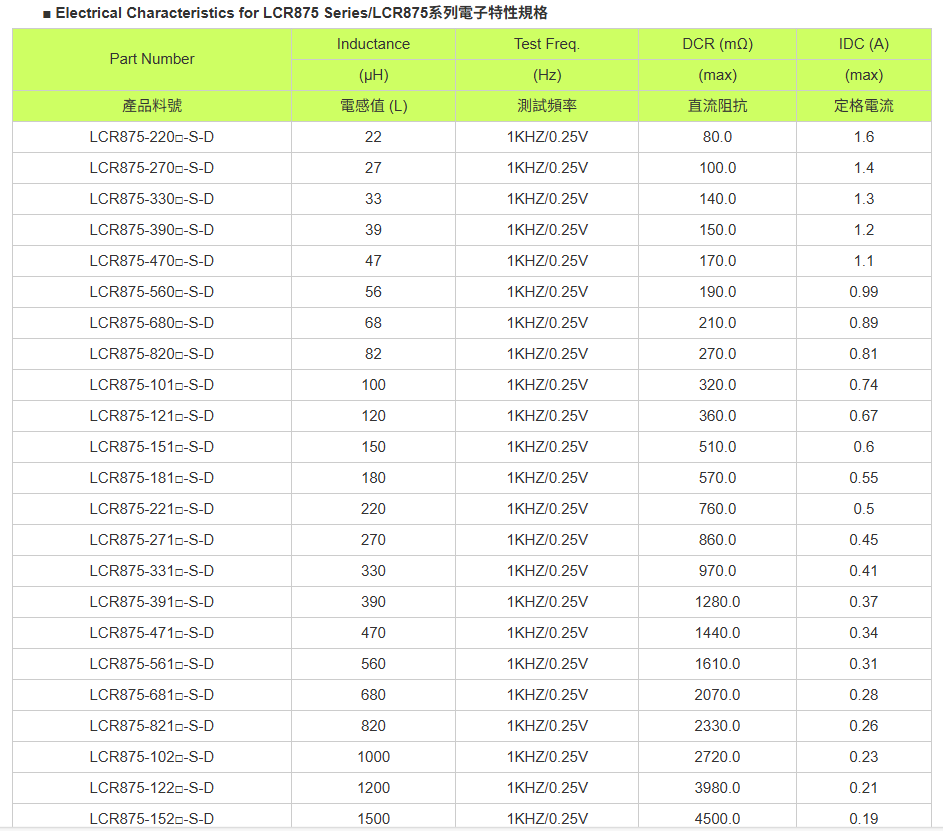

| ●SPECIFICATION TABLE |
PART
NUMBER
品名 |
INDUCTANCE
(μH)
电感值 |
DCR(max)
(Ω)
直流电阻 |
IDC(A)(max)
△L/L=-10%;△t=40℃
定格电流 |
TEST FREQ.
测试频率 |
| LRH0807C-220K |
22 |
0.08 |
1.6 |
2.52MHz |
| LRH0807C-270K |
27 |
0.10 |
1.4 |
2.52MHz |
| LRH0807C-330K |
33 |
0.14 |
1.3 |
2.52MHz |
| LRH0807C-390K |
39 |
0.15 |
1.2 |
2.52MHz |
| LRH0807C-470K |
47 |
0.17 |
1.1 |
2.52MHz |
| LRH0807C-560K |
56 |
0.19 |
0.99 |
2.52MHz |
| LRH0807C-680K |
68 |
0.21 |
0.89 |
2.52MHz |
| LRH0807C-820K |
82 |
0.27 |
0.81 |
2.52MHz |
| LRH0807C-10IK |
100 |
0.32 |
0.74 |
1kHz |
| LRH0807C-121K |
120 |
0.36 |
0.67 |
1kHz |
| LRH0807C-151K |
150 |
0.51 |
0.60 |
1kHz |
| LRH0807C-181K |
180 |
0.57 |
0.55 |
1kHz |
| LRH0807C-221K |
220 |
0.76 |
0.50 |
1kHz |
| LRH0807C-271K |
270 |
0.86 |
0.45 |
1kHz |
| LRH0807C-331K |
330 |
0.97 |
0.41 |
1kHz |
| LRH0807C-391K |
390 |
1.28 |
0.37 |
1kHz |
| LRH0807C-471K |
470 |
1.44 |
0.34 |
1kHz |
| LRH0807C-561K |
560 |
1.62 |
0.31 |
1kHz |
| LRH0807C-681K |
680 |
2.07 |
0.28 |
1kHz |
| LRH0807C-821K |
820 |
2.33 |
0.26 |
1kHz |
| LRH0807C-102K |
1000 |
2.72 |
0.23 |
1kHz |
| LRH0807C-122K |
1200 |
3.98 |
0.21 |
1kHz |
| LRH0807C-152K |
1500 |
4.50 |
0.19 |
1kHz |
| LRH0807C-182K |
1800 |
6.81 |
0.17 |
1kHz |
| LRH0807C-222K |
2200 |
7.56 |
0.16 |
1kHz |
| LRH0807C-272K |
2700 |
8.54 |
0.14 |
1kHz |
| LRH0807C-332K |
3300 |
9.74 |
0.13 |
1kHz |
| LRH0807C-392K |
3900 |
12.9 |
0.12 |
1kHz |
| LRH0807C-472K |
4700 |
14.7 |
0.11 |
1kHz |
| LRH0807C-562K |
5600 |
20.4 |
0.099 |
1kHz |
| LRH0807C-682K |
6800 |
23.0 |
0.089 |
1kHz |
| LRH0807C-822K |
8200 |
30.6 |
0.081 |
1kHz |
| LRH0807C-103K |
10000 |
35.0 |
0.074 |
1kHz |
|
| ● PART NUMBERING SYSTEM(品名系统) |
 |
1 SERIES NAME 品名 立式 POWER INDUCTORS系列
2 DIMENSIONS 尺寸 外围x高度
3 TYPE 型式 C指有磁罩 口指无磁罩
4 INDUCTANCE 电感值 前两位为有效数字，第三位表零的个数
5 TOLERANCE CODE 公差 J:±5%,K:±10%,L:±15% M:±20%,P:±25% ,N:±30%s
6 PACKING CODE 包装方式 R：Tape&Reel（卷装）B：In Bulk （袋装） |
| ● FEATURES（特性） |
Entrie Winding core is encapsulated in heat shriked ul tube or magnetically shielded.
to provide mechanical and environmental protection. |
| ● APPLICATIONS (用途) |
For swiT-2hing power supply with high reliability. Efficiency and saturation. OA equipment choke.
High current low impedance. |
| ★ Design As Gustomer's Requested Specifications. ( 根据客户要求参数来设计！) |
