〓 CN TYPE 查看包装说明
|

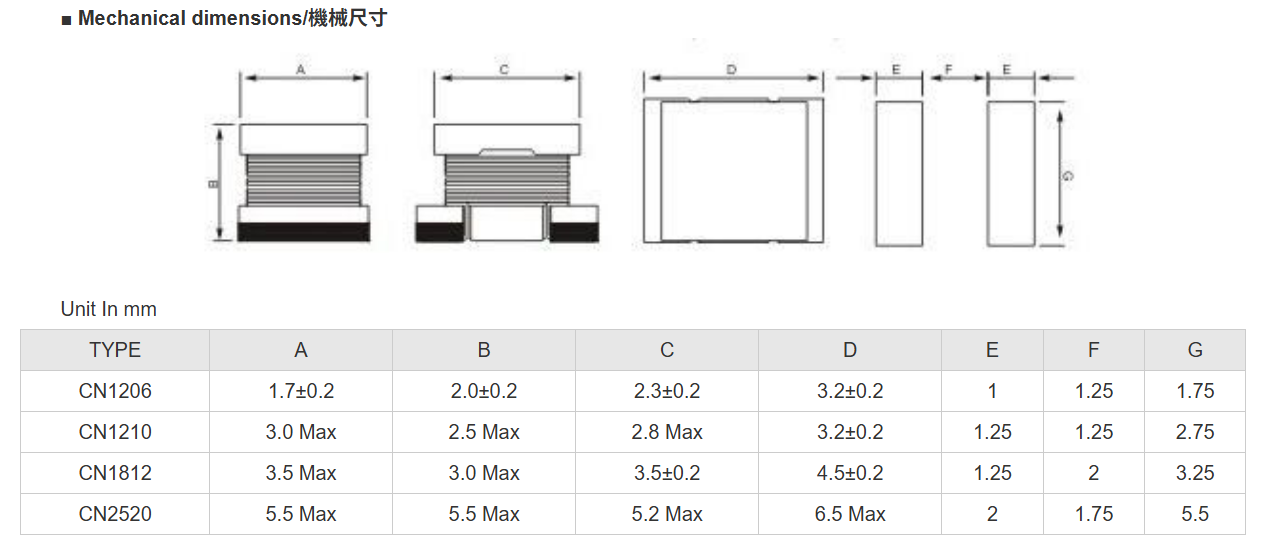

| ● EXTERNAL DIMENSIONS UNIT：mm(外形尺寸) |
|
|
 |
| PARTNO． |
A |
B |
C |
D |
E(Min) |
F(Min) |
| CN1210 |
3．2±0．3 |
2．5±0．2 |
2．5±0．2 |
2．0±0．4 |
0．9 |
1．3 |
|
CN1210 TYPE
|
| ●SPECIFICATION TABLE |
PART
NUMBER
品名 |
INDUCl-ANCE
(uH)
电感值 |
DCR(max)
(Q)
直流电阻 |
IDC(mA)(max)
△L/L=-10%;△t=40℃
定格电流 |
Q
(min)
品质因素 |
SRF(min)
(MHZ)
自谐频率 |
TESTFREQ.测试频率 |
| L |
Q |
| CN1210-R10M |
0.1 |
O.25 |
700 |
10 |
200 |
1MHZ |
2.52MHZ |
| CN1210-R18M |
0.18 |
0.25 |
650 |
10 |
200 |
1MHZ |
2.52MHz |
| CN1210-R27M |
0.27 |
0.25 |
600 |
10 |
200 |
1MHZ |
2.52MHz |
| CN1210-R39M |
0.39 |
0.25 |
530 |
10 |
200 |
1MHZ |
2.52MHz |
| CN1210-R56M |
0.56 |
0.25 |
530 |
10 |
160 |
1MHz |
2.52MHz |
| CN1210-R68M |
0.68 |
0.25 |
470 |
10 |
160 |
1MHz |
2.52MHZ |
| CN1210-R82M |
0.82 |
0.25 |
450 |
10 |
120 |
1MHZ |
2.52MHZ |
| CN1210-1ROM |
1.0 |
0.5 |
445 |
10 |
100 |
1MHZ |
1MHZ |
| CN1210-1R2M |
1.2 |
0.6 |
425 |
10 |
100 |
1MHz |
1MHz |
| CN1210-1R5M |
1.5 |
0.6 |
400 |
10 |
75 |
1MHZ |
1MHZ |
| CN1210-1R8M |
1.8 |
0.7 |
390 |
10 |
60 |
1MHZ |
1MHZ |
| CN1210-2R2M |
2.2 |
0.8 |
370 |
10 |
50 |
1MHZ |
1MHZ |
| CN1210-2R7M |
2.7 |
0.9 |
320 |
10 |
43 |
1MHz |
1MHZ |
| CN1210-3R3M |
3.3 |
1.0 |
300 |
10 |
38 |
1MHZ |
1MHZ |
| CN1210-3R9M |
3.9 |
1.1 |
290 |
10 |
35 |
1MHz |
1MHZ |
| CN121O_4R7M |
4.7 |
1.2 |
270 |
20 |
31 |
1MHZ |
1MHZ |
| CN1210-5R6M |
5.6 |
1.3 |
250 |
20 |
28 |
1MHZ |
1MHZ |
| CN1210-6R8M |
6.8 |
1.5 |
240 |
20 |
25 |
1MHZ |
1MHZ |
| CN1210-8R2M |
8.2 |
1.6 |
225 |
20 |
23 |
1MHz |
1MHz |
| CN1210-100K |
10 |
1.8 |
190 |
25 |
20 |
1MHZ |
1MHz |
| CN1210-120K |
12 |
2.0 |
180 |
25 |
18 |
1MHz |
1MHz |
| CN1210-150K |
15 |
2.2 |
170 |
25 |
16 |
1MHZ |
1MHZ |
| CN1210-180K |
18 |
2.5 |
165 |
25 |
15 |
1MHz |
1MHz |
| CN1210-220K |
22 |
2.8 |
150 |
25 |
14 |
1MHZ |
1MHZ |
| CN1210-270K |
27 |
3.1 |
125 |
25 |
13 |
1MHz |
1MHz |
| CN1210-330K |
33 |
3.5 |
115 |
25 |
12 |
1MHZ |
1MHz |
| CN1210-390K |
39 |
3.9 |
110 |
25 |
11 |
1MHZ |
1MHz |
| CN1210-470K |
47 |
4.3 |
100 |
25 |
11 |
1MHZ |
1MHZ |
| CN1210-560K |
56 |
4.9 |
85 |
25 |
10 |
1MHz |
1MHz |
| CN1210-680K |
68 |
5.5 |
80 |
25 |
9.0 |
1MHZ |
1MHZ |
| CN1210-820K |
82 |
6.2 |
70 |
25 |
8.5 |
1MHZ |
1MHz |
| CN1210-101K |
100 |
7.0 |
80 |
30 |
8.0 |
1MHZ |
796KHZ |
| CN1210-121K |
120 |
8.0 |
75 |
30 |
7.5 |
1MHz |
796KHZ |
| CN1210-151K |
150 |
9.3 |
70 |
30 |
7.0 |
1MHZ |
796KHZ |
| CN1210-181K |
180 |
10.2 |
65 |
30 |
6.0 |
1MHZ |
796KHZ |
| CN1210-221K |
220 |
11.8 |
65 |
30 |
5.5 |
1MHZ |
796KHZ |
| CN1210-271K |
270 |
12.5 |
65 |
30 |
5.0 |
1MHZ |
796KHz |
| CN1210-331K |
330 |
13.0 |
65 |
30 |
5.0 |
1MHZ |
796KHZ |
| CN1210-391K |
390 |
22.0 |
50 |
30 |
5.0 |
1MHZ |
796KHZ |
| CN1210-471K |
470 |
25.0 |
45 |
30 |
5.0 |
1MHZ |
796KHZ |
| CN1210-561K |
560 |
28.0 |
40 |
30 |
5.0 |
1MHz |
796KHz |
|
| ● PART NUMBERING SYSTEM(品名系统) |
 |
1 SERIES NAME 品名 S指备银系列，A指品名号
2 DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值 前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差 J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
| ● FEATURES (特性) |
Various high power inductors are superior to be high saturation for surface mounting.
具有高功率、高饱和电流、低阻抗、小型化之特点 |
| ● APPLICATIONS (用途) |
Power supply for VTR，OA equipment Digital camera，LCD television set notebook PC，portable
communication equipments，DC/DC converters，eT-2.
录影机，OA仪器，数码相机，液晶电视，笔记型电脑，小型通信仪器，DC/DC变压器之电源供应器等 |
| ★ Design As Gustomer's Requested Specifications. ( 根据客户要求参数来设计！) |
